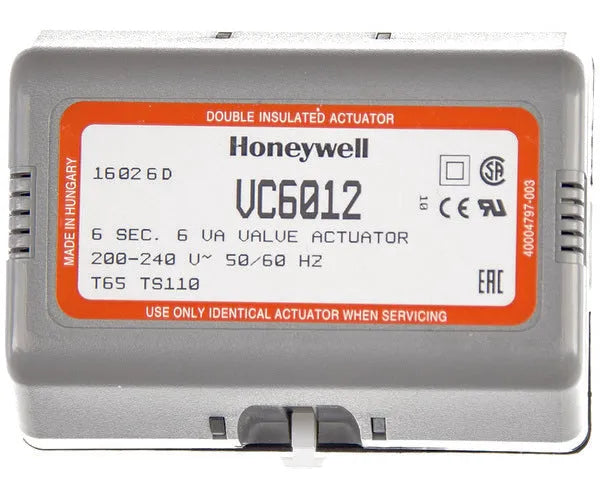

HONEYWELL actuator motor valve honeywell vc6012 | WX003333

Save 10%

Price:
Sale price114,11€ Regular price126,79€
Stock:
In stock
Compatible with:

Description

Master the Honeywell VC6012 valve motor actuator, the essential component for precise control of water flow in your heating and cooling systems. This Honeywell VC6012 valve motor actuator is designed to deliver reliable performance and superior energy efficiency, ensuring a comfortable environment in your home or business.
  • Balanced hydronic valves with 2 or 3 ways
  • Wide variety of pipe connections (ISO 7-1 (BSP. Pl), BSP.T, NPT, Sweat, Compression, Flare)
  • Control by SPST or SPDT at low or high voltage
  • Actuators available in 24 Vac, 100-130 Vac, or 200-240 Vac
  • Auxiliary SPDT switch available
  • Quick-connect electrical connections or 1000 mm cables
  • Minimal actuator power consumption
  • Double insulated actuator
  • Pressure differential up to 4 bar
  • Fluid temperature from 1 to 95 °C
  • Ambient temperature from 0 to 65 °C
  • Quick and easy replacement of moving parts
  • Actuator head installation does not require system drainage
  • Silent operation without water hammer
Feature Detail
Electrical termination - Voltage 24 V, 50/60 Hz (Blue); 100-130 V, 50/60 Hz (Black); 200-240 V, 50/60 Hz (Red)
Electrical termination - Connector MolexTM (head# 39-30-1060) or 1000 mm cable
Power consumption 6 Watts maximum (only during valve position change)
Nominal timing Valve opens in 6 seconds @ 60 Hz (20% longer @ 50 Hz)
End switch rating 2.2 A inductive at 5-120 Vac; 1.0 A inductive above 120-277 Vac; Minimum 0.05A 24 Vdc
Ambient temperature 0 ... 65 °C
Fluid temperature 1 ... 95 °C (short peak up to 120 °C)
Shipping storage temperature -40 ... 65 °C
Pressure rating - Static 20 bar
Pressure rating - Burst 100 bar
Maximum operating pressure differential 4 bar
Valve material - Body Bronze
Valve material - Cartridge RytonTM (polyphenylene sulfide), NorylTM (polyphenylene oxide)
Valve material - O ring seals EPDM rubber
Valve material - Stem Stainless steel
Valve material - Actuator cover NorylTM (94V-0)
Valve material - Actuator base RytonTM (94V-0)
Dimensions Variable depending on connection type and model (see datasheet for specific details)
  • Applications for domestic boiler heating and domestic cooling
  • Control of hot and/or cold water flow in small domestic and commercial applications
  • Control of individual fan coils, baseboard radiators, or convectors
  • Compatible with many boiler brands and models (as mentioned in search results)
  • ON-OFF zone control in domestic systems (2-way valves)
  • Diverter or mixing applications in central heating and/or cooling systems (3-way valves)
  • Regulation of water flow in heating and cooling systems
  • Silent operation without water hammer
  • The actuator only consumes energy while moving the valve to the desired position
  • Removable actuator head without affecting the water system integrity
  • All actuator versions are interchangeable with any valve body, offering high flexibility for installation and maintenance
  • Quick and easy replacement of moving parts
  • Actuator head installation does not require system drainage
  • Complies with Low Voltage Directive 73/23/EEC (EN 60730-1 and -2 -8)
  • Complies with EMC Directive 89/336/EEC for incorporation in domestic electrical applications according to EN 60335 series
