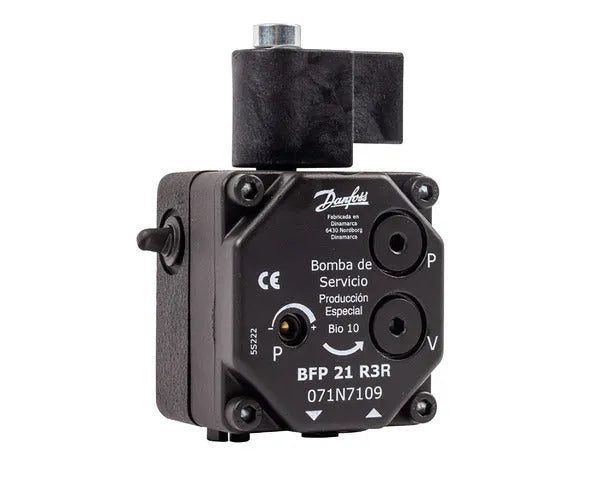

DANFOSS diesel pump bfp21 r3 | 071N7109

Save 10%

Price:
Sale price64,86€ Regular price72,06€
Stock:
In stock

Description

Service pump for diesel burners. Rotation and nozzle outlet/pressure are always determined looking from the pump shaft end. Does not include pump connection cable 071G0200 (280.90.0122).

Feature Value
Product type BFP 21
Biofuel blend 100
Rotation L (left) or R (right, according to initial JSON)
Nozzle outlet/pressure L + R
Coil voltage 220 - 230 V AC
Gross weight 1.198 kg
Net weight 1.054 kg
Volume 2.153 L
Actuator type NC
Ambient temperature -20 °C to 70 °C
Approvals CE, UKCA, Intertek Semko, DIN CERTCO
Capacity 24 L/h
Shutoff function Cutoff
Coil consumption 9 W
Coil current AC
Factory pressure 10 bar
Filter area 11 cm²
Filter grade 200 µm
Filter type Cartridge
Shaft 1 plane
Protection rating IP40
Medium temperature 0 °C to 70 °C
Oil pump speed 3450 rpm
Oil type Bio/Kerosene/Light
Pipe connection 2 pipes
Power consumption 42 W
Pressure (max.) 20 bar
Pressure (min.) 7 bar
Feed line pressure (max.) 2 bar
Kerosene pressure (max.) 12 bar
Shaft diameter 8 mm
Starting torque (max.) 0.1 N-m
Suction line vacuum (max.) 0.4 bar
Supply voltage 220-230 V
Viscosity 1.3 cSt to 12 cSt. Product dimensions (according to initial JSON): Height: 13 cm, Width: 11 cm, Depth: 14 cm.
