Compressor ATQ420D1UMU R410 INVERTER GMCC | 11103020000029

Save 10%

Price:
Sale price1.295,18€ Regular price1.439,09€
Stock:
Sold out
Compatible with:

Description

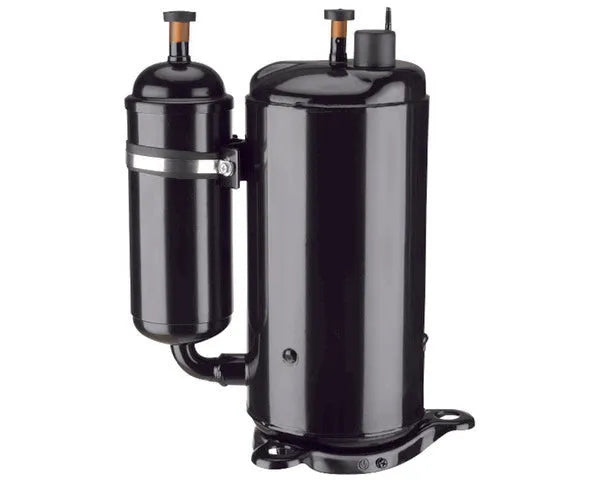

The ATQ420D1UMU R410 inverter GMCC compressor is a hermetic rotary DC inverter compressor designed for air conditioning systems with rotary technology and DC inverter power supply. It uses R410A refrigerant and features a brushless DC motor.

Model ATQ420D1UMU
Displacement 41.5 cm3/rev.
Maximum refrigerant charge 4.3 Kg
Revolution range 12-120 rps
Oil charge 1400 ml
Total weight with oil 19.6 Kg
Number of poles 6
Coil resistance 20c 0.38 Ω
Insulation grade E
Discharge tube diameter 9.8 mm
Suction tube diameter 16.2 mm
Nominal capacity 12960 W ±5%
Nominal inverter input power 3520 W ±5%
Nominal inverter input current 7.05 A ±5%
COP 3.68
Insulation resistance ≥20 MΩ
Leakage withstand voltage AC1500V-1min / 10 mA MAX
Residual moisture ≤250 mg
Residual impurities ≤45 mg
Voltage 380-420V/50Hz (3 phases)
Power 13.13 kW
Height 406 mm
Diameter 145.4 mm
Maximum discharge temperature 100 ºC
  • ATH420SD (HIGHLY)
  • C-8RZ420H (AVIC SANYO)
  • DA330A2F-20M (TOSHIBA)
  • DA422A3 (TOSHIBA)
  • GPD420MA (LG)
  • GPT 425DA (LG)
  • GPT442MA (LG)
  • GPT442MB (LG)
  • QXAS-F428 ZX050 (SANHUA)
  • XHV0381P (COPELAND)

Suitable for various air conditioning applications, both for cooling and heating. Used in semi-industrial climate control systems.

  • Efficiency: High energy efficiency with a COP of 3.68, indicating efficient performance in cooling and heating.
  • Durability and reliability: Internal motor protection system and use of VG74 oil that contributes to the durability and reliability of the equipment.
  • Easy integration: Vertical design and compact dimensions (406 mm height) facilitating its integration into AC systems.
  • Inverter technology: DC Inverter technology that allows smooth operation and precise speed control.
