Compressor MPT12RA R404A 3/8 CUBIGEL hmb
Compressor MPT12RA R404A 3/8 CUBIGEL hmb

Compressor MPT12RA R404A 3/8 CUBIGEL hmb

Save 10%
Price:
195,73€ 217,48€
Stock:
In stock

Description

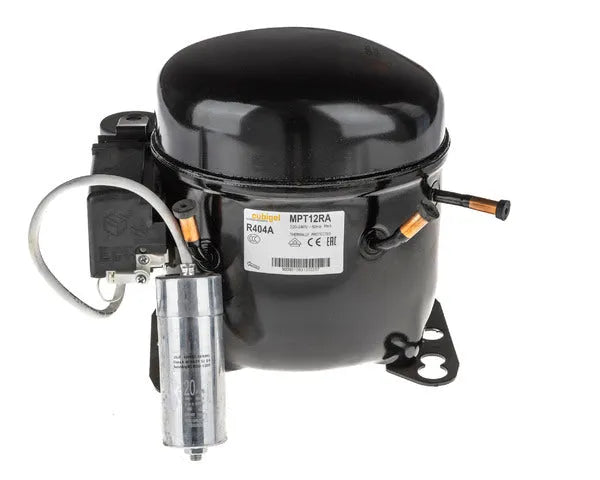

This hermetic compressor CUBIGEL-HUAYI model MPT12RA (3/8hp) is designed for commercial refrigeration systems using refrigerant R404A. It offers efficient and reliable performance for various applications.

  • Displacement 12.10 cm³/F
  • Capillary/Valve expansion: -25 / +10ºC
  • Application: High-Medium Back Pressure (HMBP)
  • Refrigerant: R404A
  • Displacement: 12.10 cm³
  • Evaporation temperature: -25.0 °C to 10.0 °C
  • Compressor cooling: Ventilated
  • Maximum ambient temperature: 43.0 °C
  • Diameter: 27.00 mm
  • Stroke: 21.13 mm
  • Net weight: 12.20 kg
  • Oil type: ISO VG 32 ESTER
  • Oil charge: 400 cm³
  • Rated power: 3/8 hp
  • Voltage range: 198-255 V
  • Motor type: CSR
  • Number of phases: 1 PH
  • Locked rotor amperage (LRA): 18.50 A
  • Maximum continuous current (MCC): 5.30 A
  • Main winding resistance at 25°C: 5.19 Ω
  • Start winding resistance at 25°C: 7.67 Ω
  • Cooling capacity (ASHRAE/CECOMAF): 1,685 kcal/h / 1,559 W
  • COP (ASHRAE/CECOMAF): 2.35 W/W / 1.91 W/W
  • EER (ASHRAE/CECOMAF): 2.02 kcal/Wh / 1.65 kcal/Wh
  • Input power (ASHRAE/CECOMAF): 834 W / 817 W
  • Current (ASHRAE/CECOMAF): 3.84 A / 3.76 A
  • Start capacitor: 64-77 µF 330 V
  • Run capacitor: 20 µF 420 V
  • Relay: Option 1
  • Reference: 2014 158. + NTC15Ω
  • Pick-Up: 9.05 A
  • Drop-Out: 7.70 A
  • Protector: Option 1
  • Reference: T0188
  • Current: 12.30 A
  • Time check: 7.5-14 sec
  • Discharge temperature (Open/Closed): 115.00 / 61.00 °C
  • Hermetic compressor suitable for commercial refrigeration systems.
  • Commercial refrigeration (water coolers, beverage coolers, etc.)
  • High efficiency (reduces energy consumption by 10% to 30% compared to standard ranges)
  • Compact design
  • Lightweight
  • Silent operation
