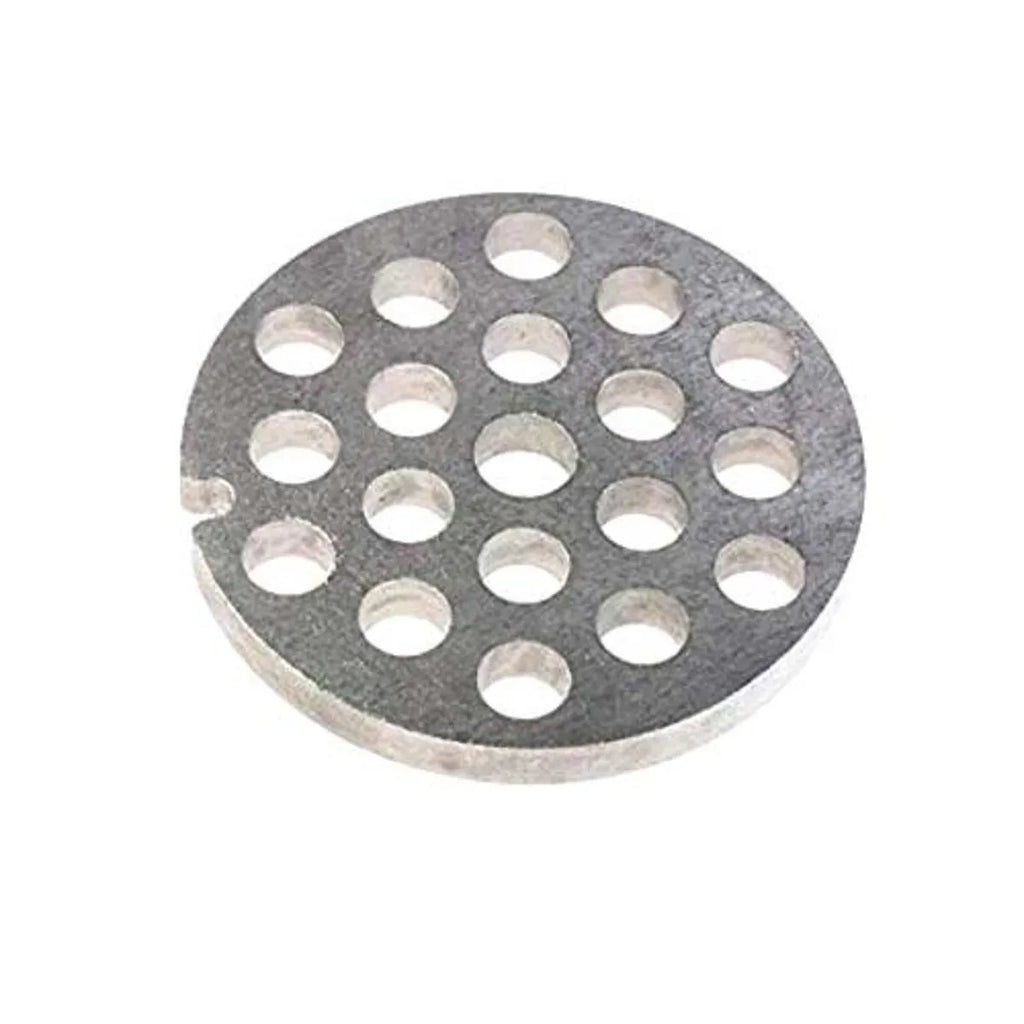

Kenwood KW714428 Coarse Grater Disc – Drum for MG Meat Grinder

Original Kenwood coarse grater disc that attaches to the outlet of the meat grinder head to achieve a coarse texture grind, ideal for hamburgers, meatballs, and stewing meat. It is part of the Kenwood / De'Longhi group. When the holes become deformed or the edge wears out, the part loses efficiency and should be replaced.

Common Symptoms

• The meat comes out crushed instead of cut into thick strands.
• Repeated clogging of tendons or fibers in the holes.
• Disc with deformed, rusted, or heavily worn holes.
• Slow or irregular meat output.
• Heating of the head during grinding.

Why Does This Part Break?

• Frequent grinding of meat with bones or cartilage.
• Washing with abrasive scrubbers or dishwashers that rust the steel.
• Storage in damp conditions, which promotes corrosion.
• Natural wear from accumulated kilograms ground.

• Technical Specifications
• Material: food-grade steel.
• Grating size: coarse.
• Compatible with Kenwood MG series heads.
• Replaces previous reference KW696902.

If you have doubts about compatibility with your grinder, you can contact us and we will help you confirm the appropriate replacement.

Reference: KW714428

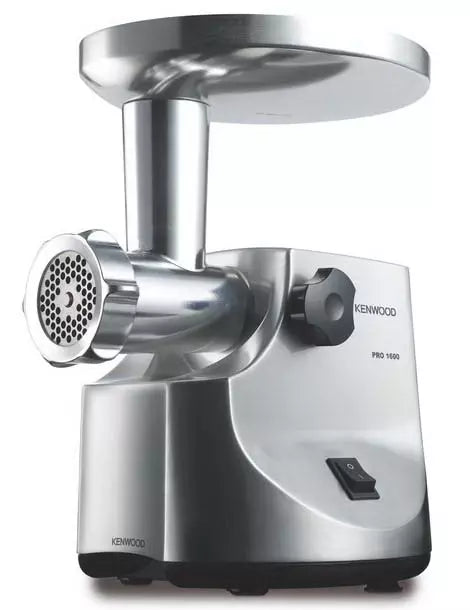

• MG480, MG510, MG511, MG517

We recommend checking the reference on the rating plate of your appliance before placing the order.
