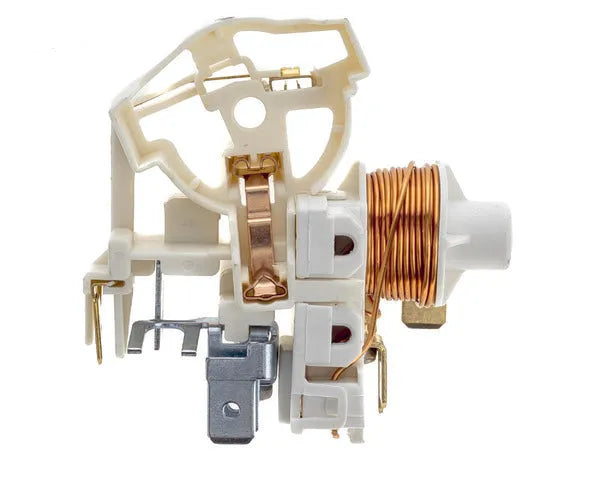

Compressor relay protector GP12TB

Save 10%

Price:
Sale price10,50€ Regular price11,67€
Stock:
In stock

Description

This product is a compressor relay protector designed for High/Mid. back pressure systems. It offers reliable performance and is compatible with refrigerant R134a.

Feature Value
Displacement 12.05 cm3
Diameter 29.37 mm
Stroke 17.78 mm
Net Weight 11.2 Kg
Oil type ISO VG 22 ESTER
Oil charge 350 cm3
Approximate Power 3/8 CV
Voltage/Frequency 220V 50Hz
Voltage range 187-264V
Code 63,112
Type CSIR
Phase number 1 PH
Locked rotor current 13.5 A
Main W. resistance at 25°C 5.75 Ω
Start W. resistance at 25°C 20.3 Ω
Application High/Mid. back pressure
Refrigerant R134a
Evaporating -25 to 10 °C
Expansion Capillary/Valve
Compressor cooling Fan cooled
Max. ambient temperature 43 °C
Nominal Performance Cycle C: Cooling capacity 893 W
Nominal Performance Cycle C: Input power 497 W
Nominal Performance Cycle C: EER 1.54 kcal/Wh
Nominal Performance Cycle C: COP 1.79 W/W
Nominal Performance Cycle C: Current 2.82 A
Nominal Performance Cycle D: Cooling capacity 1070 W
Nominal Performance Cycle D: Input power 520 W
Nominal Performance Cycle D: EER 1.76 kcal/Wh
Nominal Performance Cycle D: COP 2.05 W/W
Nominal Performance Cycle D: Current 2.89 A
Test Conditions: Evaporating temperature 5.0 / 7.2 °C
Test Conditions: Condensing temperature 55.0 / 55.0 °C
Test Conditions: Liquid temperature entering expansion 55.0 / 46.0 °C
Test Conditions: Ambient temperature and return 32.0 / 35.0 °C
Test Conditions: Tens/Freq 220V 50Hz / 220V 50Hz
Electrical Components: Relay 9660 A 138 / MTRP 43
Electrical Components: Pick-Up 6.20 / 6.10 A
Electrical Components: Drop-Out 5.25 / 5.20 A
Electrical Components: Protector MRT26AMK / T0181
Electrical Components: Current 11.1 / 11.1 A
Electrical Components: Time check 7.5-14 / 7.5-14 sec
Electrical Components: Disc temp. (Open/Close) 105.0/61.0 / 105.0/61.0 °C
Electrical Components: Starting capacitor 47-56/330 µF/V/V
Internal Diam. (MM): Suction/Service 8.1
Internal Diam. (MM): Service/Suction 8.1
Internal Diam. (MM): Discharge 6.5
